API Inspection
Built for real-world mechanical integrity programs with integrated API workflows, digital CML management, automated calculations, inspection sketching, UT imports, and professional reporting.
• API 510, API 570, and API 653 workflows
• Integrated CML management and tracking
• Corrosion rate and remaining life calculations
• Tmin evaluation and monitoring tools
• Digital piping, vessel, and tank sketching
• UT inspection data imports and logging
• Historical thickness comparison tracking

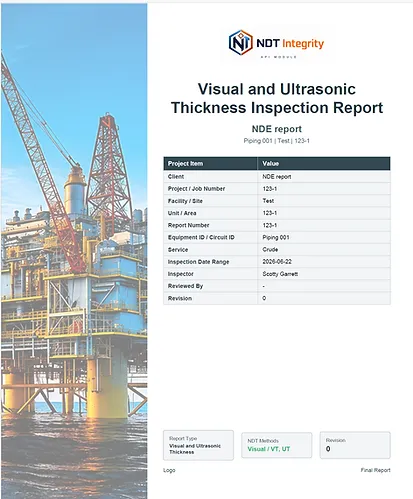

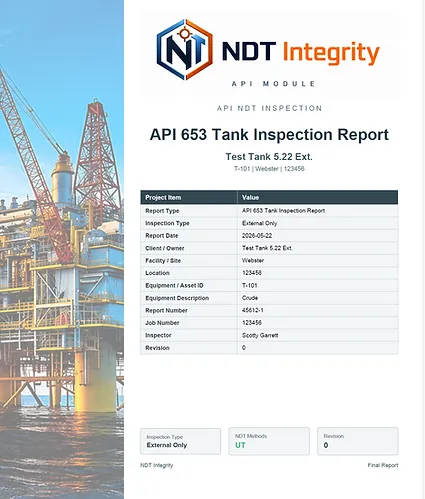

• API-compliant report generation
• Custom report templates and branding
• Technique sheet and calibration tracking
• Inspector cert and attachment management
• Cloud project storage and collaboration
• Interactive inspection drawings and annotations
• Inspection scheduling and next inspection
• Automated data organization and reporting
• Real-world field inspection workflow support
• Integrated inspection logs and documentation
• Professional 11x17 sketch layouts and exports

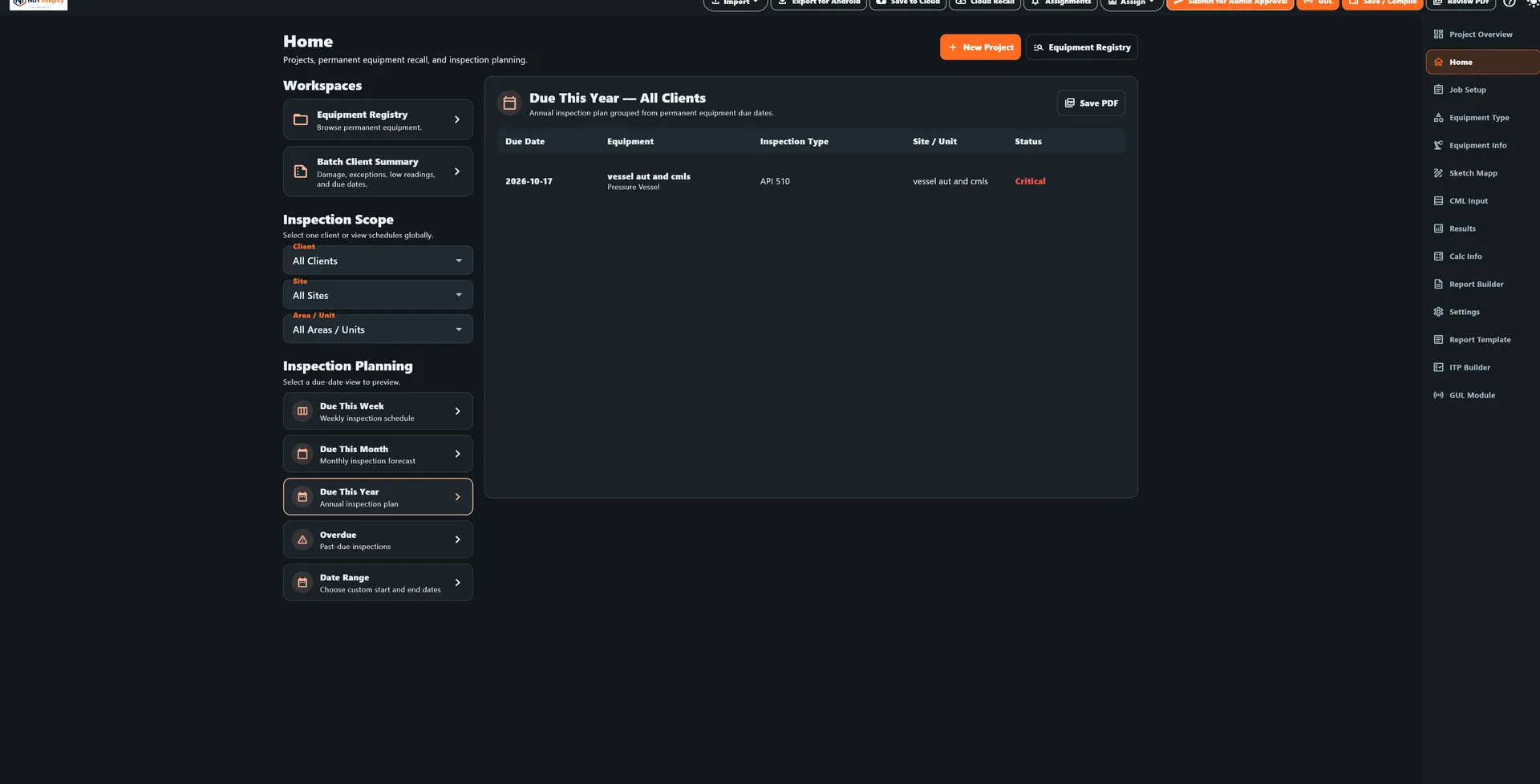

• Multi-equipment inspection project management
• Designed specifically for mechanical integrity programs

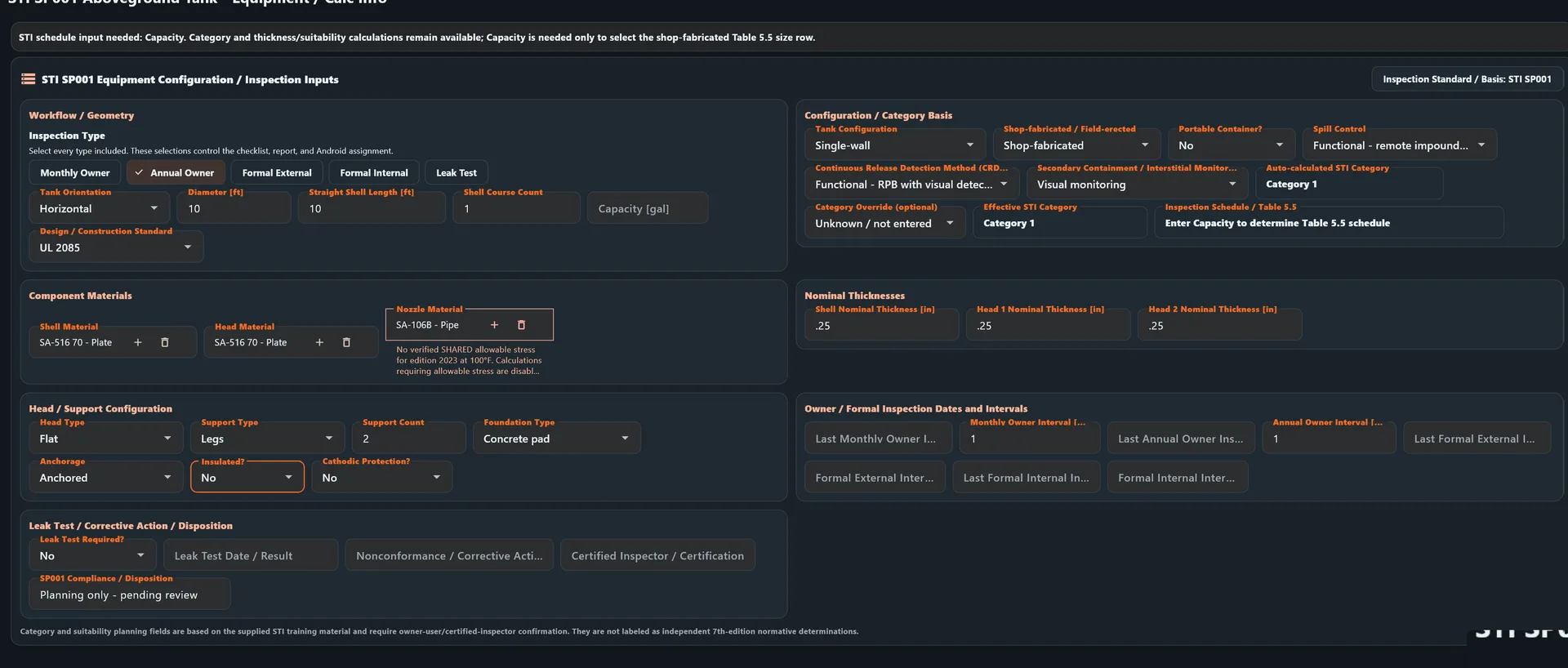

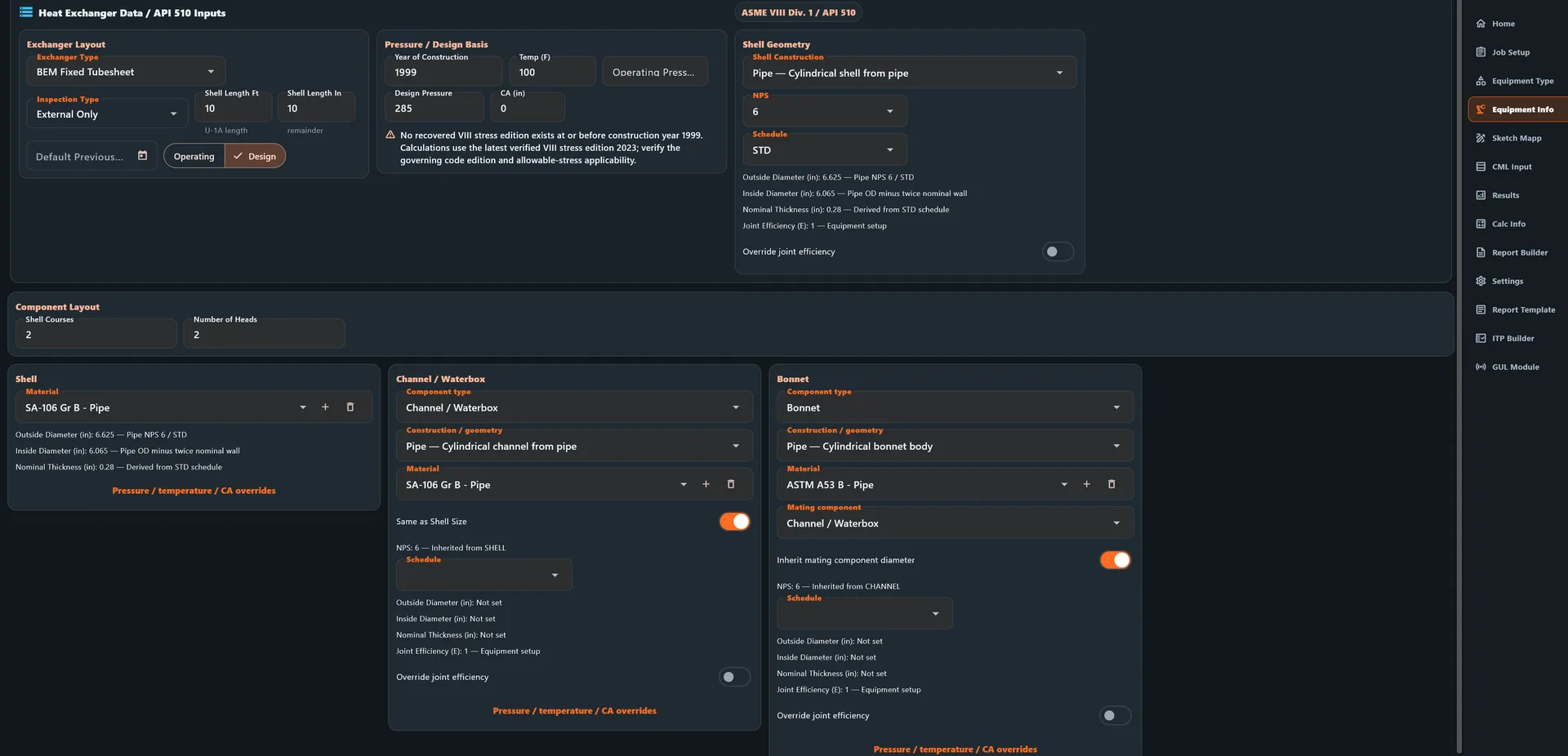

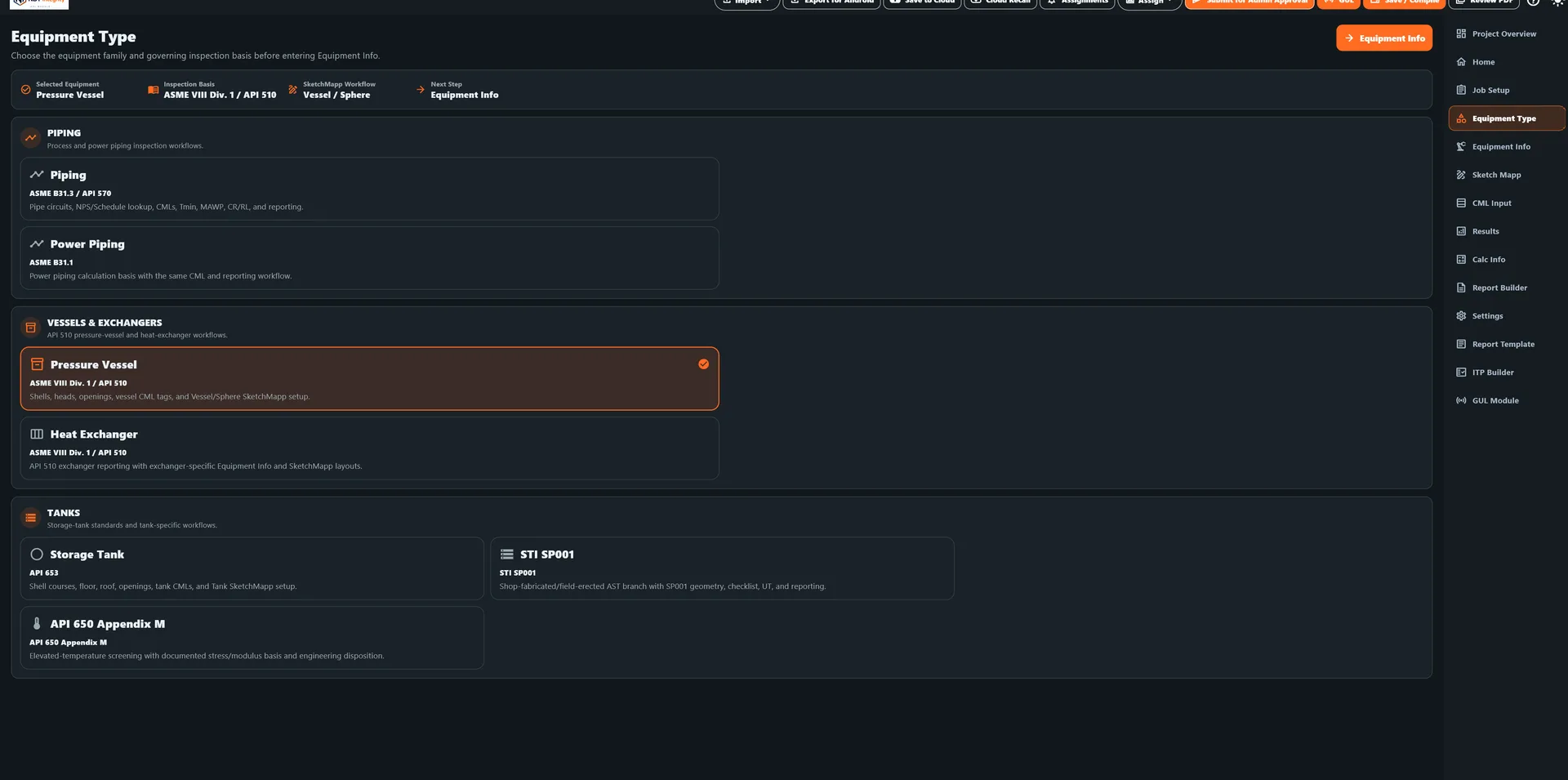

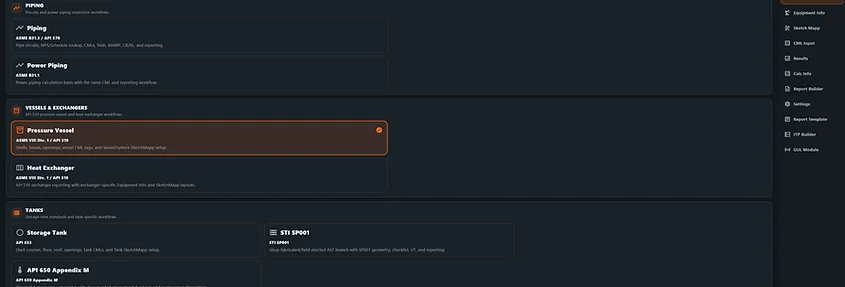

Equipment Setup
-
Equipment data setup for piping, vessels, and tanks
-
Design pressure, temperature, material, and thickness inputs
-
Nozzle, manway, shell, head, roof, floor, and course setup
-
Code basis and inspection type selection
-
Client, facility, asset, and project information tracking

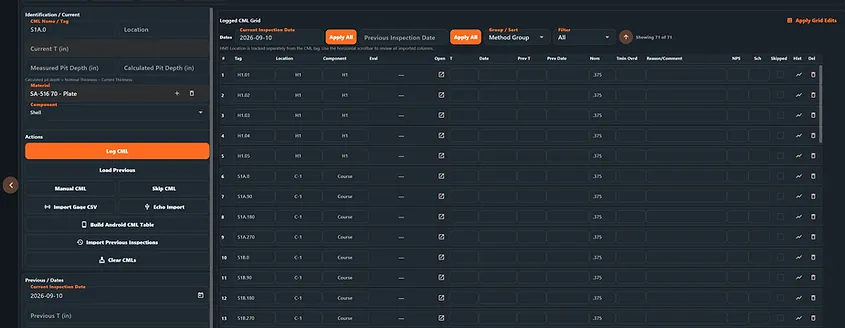

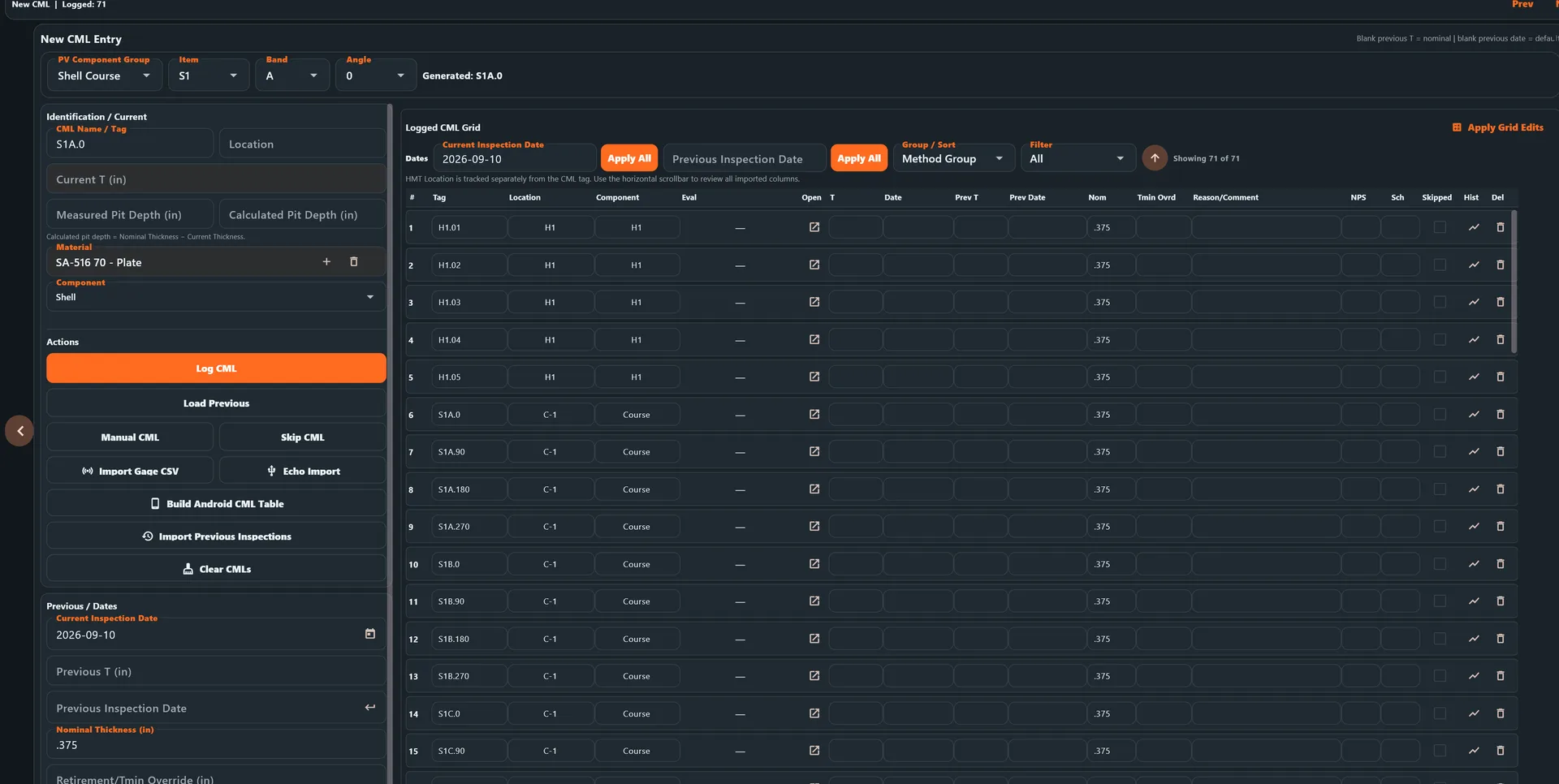

CML Entry
-
CML/TML table creation and management
-
Previous and current thickness entry
-
UT data import and inspection logging
-
CML status tracking and review workflow
-
Component, location, material, and nominal thickness tracking
-

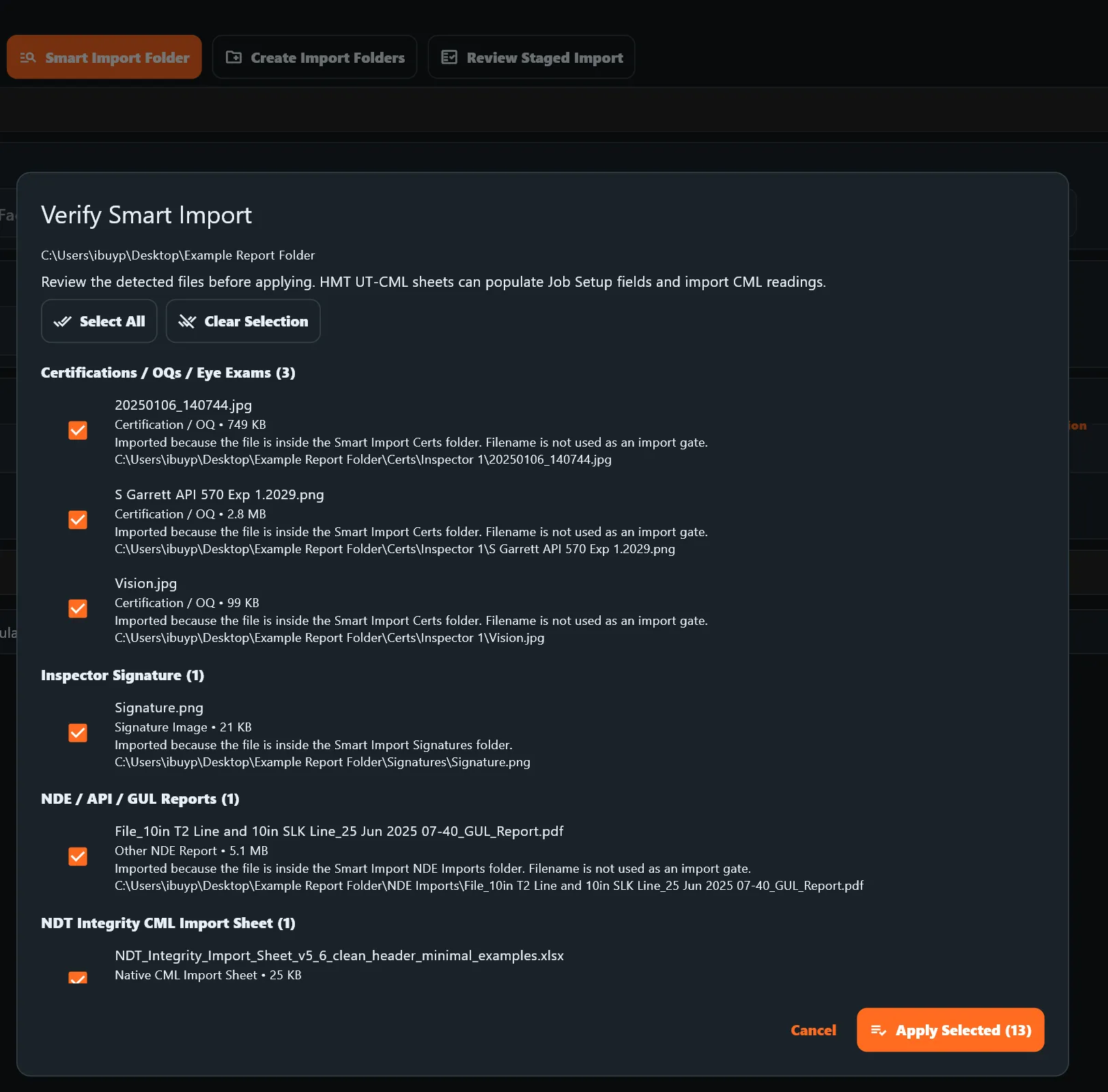

Direct CSV Imports from UT Gauge

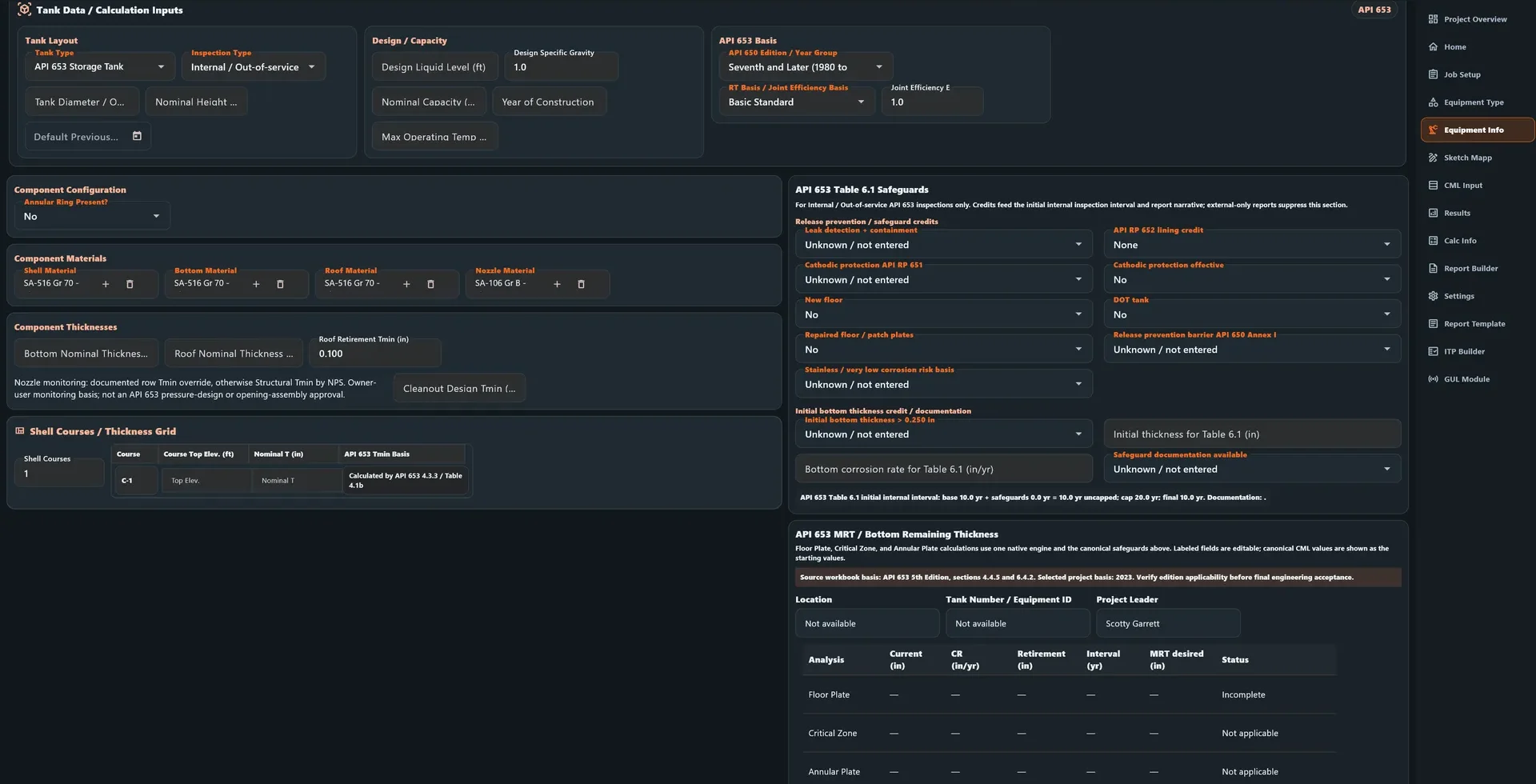

IDMS Calculations
-

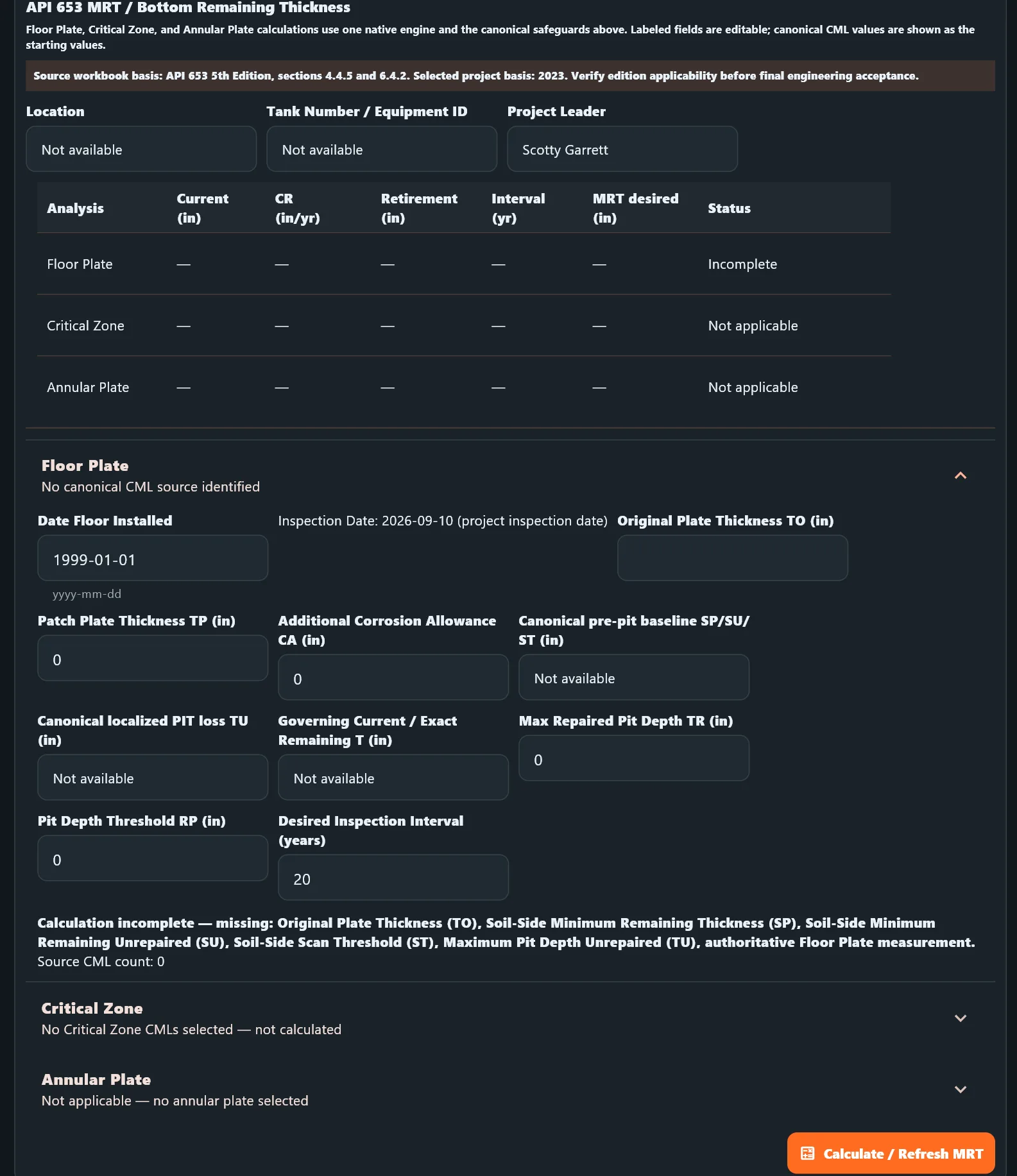

Tmin and retirement thickness calculations
-
Corrosion rate and remaining life calculations
-
Next inspection date planning
-
Monitor, concern, and below-Tmin status logic
-
API 510, 570, and 653 reporting integration
